Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Teamup
  • Model Number: TUV8
  • Type: Handheld
  • Dimensions: 100*52*31mm(H*L*W)
  • Frequency Range: VHF136-174MHz UHF400-470MHz
  • Storage Channel: 128*2
  • Talk Range: 3-10km+
  • power output: 5W
  • Weight: 220g
  • color: black
  • Modulation: F3E
  • Function 1: CTCSS/DCS
  • Function 2: ANI ID
  • Function 3: FM radio
  • Function 4: VOX function
  • Function 5: 1750 tone relay function
  • walkie talkie type: long range mini walkie talkie

Packaging & Delivery

Packaging Details Color Box: 263*186*57mm,
Carton:60*39*28cm,
Packing: 1 pc/color box, 20 boxes/carton
Delivery Time Within 1-3 working days after receive the payment.

Specifications

1.Handheld long range mini walkie talkie
2.Dual display,single standby
3.128 channels
4.ANI ID display
5.CTCSS/DCS and scan

Quanzhou Tian'eng Electronics Co., Ltd is a professional walkie talkie ( two-way radio ) manufacturer.

1. 100% Real Factory

2. Sample Order Acceptable

3. Small Order Quantity Available

4. OEM Order is warmly welcome!


Product Description

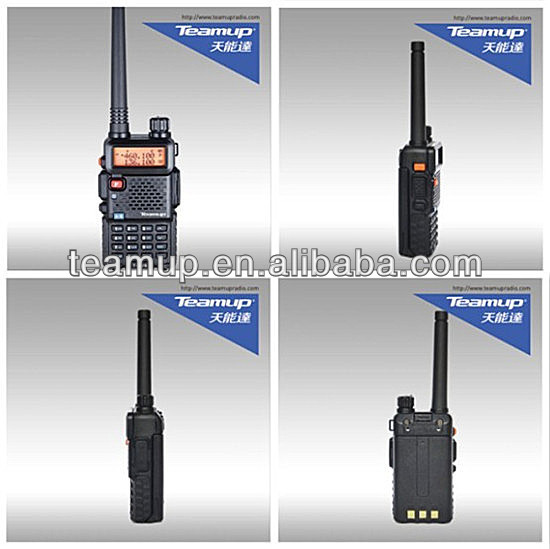

Teamup professional TUV8 long range mini walkie talkie

    TUV8

walkie talkie


Key FeaturesFrequency RangeVHF136-174MHz  UHF400-470MHz
Channel No.128
Power Output5W
Dimension100mm*52mm*31mm(without antenna)
Weight220g (with battery and antenna)
Main Function1. Dual band, dual display, dual standby
2. FM radio function
3. A/B band independent operation
4. Emergency call function
5. DTMF shrink decoding function
6. 1750tone relay function
7. 2-TONE two-tone shrink decoding function



◊ Technical Indicator

General Specifications
Frequency RangeVHF136-174MHz     UHF400-470MHz
Frequency stability±2.5ppm
Rated voltageDC7.2V (Rechargeable lithium battery)
Memory channels2*128 channels
Antenna configuration  Add a sense antenna
Antenna impedance50 Ω
Work method

The same frequency simplex

or different frequency simplex

Size(H*L*W)110*58*32mm (without antenna)
Transmit section
Output power (high / low)5W
Modulation (broadband / narrowband)16KF 3E / 11KF 3E

Maximum frequency deviation

(broadband / narrowband)

≤5KHz / ≤2.5KHz
Adjacent channel power≤-65dB / ≤60dB
Spurious power≤7.5uV
Pre-emphasis characteristic6dB
Emission current≤1.6A(5W)

CTCSS/CTCSS frequency deviation

(broadband / narrowband)

0.5KHz±0.1KHz, 0.4KHz±0.1KHz
Modulation sensitivity8-12mV
Modulation distortion<5%
 Receive section
Reference sensitivity-122dBm(12dB SINAD)
Audio power1W
Audio distortion<10%
Block≥85dB

Intermodulation

(broad band / narrow band)

≥60dB  /  ≥55dB

Adjacent Channel Selectivity

(Wide / narrow)

≥65dB  /  ≥60dB
Clutter suppression≥65dB



◊ TUV8 long range walkie talkie


Packaging & Shipping

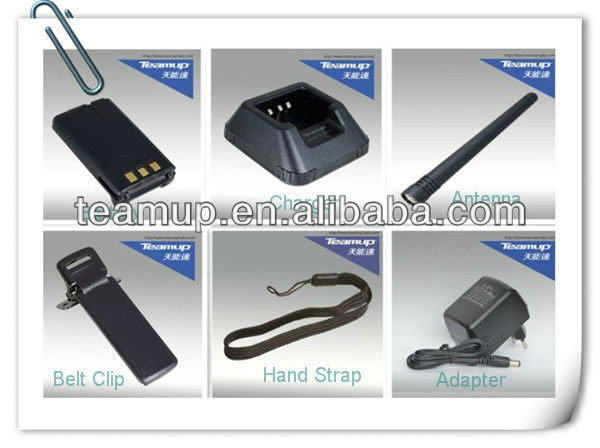

◊ Standard Accessories

Item                                      Quantity
Antenna1
Li-ion Battery Pack     1
Adapter 1
Charger1
Belt Clip1
User's Manual1





◊ Shipment and payment

MOQ

2 for samples; 100 for mass production; 500 for OEM

Packaging1 pc/gift box, 20 boxes/carton
Trade Terms  FOB Xiamen/Shenzhen,China
Delivery timeWithin 1-3 working days after receive the payment.
PaymentT/T, L/C, PayPal, Western Union

Company Information

◊ In-house production line





◊ Certificates


Exhibition Show

♦ HKTDC Hong Kong Electronics Fair 2013 (Spring Edition)



♦ 2013 China-ASEAN (Thailand) Commodity Fair



♦ HKTDC Hong Kong Electronics Fair 2013 (Autumn Edition)



♦ HKTDC Hong Kong Electronics Fair 2014 (Spring Edition)



♦ ICT Expo Indonesia 2014




Our Services

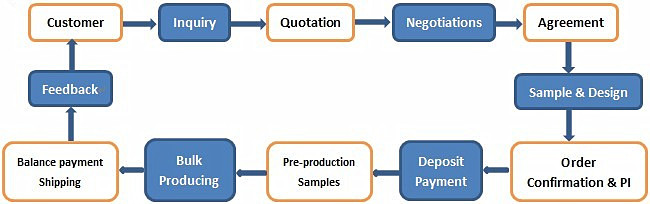

◊ How to make an order?



◊ Contact us









 Scan here, good suprise waiting for you...
