Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Teamup
  • Model Number: TM9000
  • Type: Vehicle Mouted
  • Dimensions: 145X47X190mm(W*H*D)
  • Frequency Range: UHF400-490MHz
  • Storage Channel: 200
  • Talk Range: 30-60km in the opening place
  • Power OutPut: 50W In-Vehicle Radio
  • Voltage: 13.8V DC ±15%
  • Function 1: DTMF/2 ton/5 tone
  • Antenna impedance: 50Ω
  • Function 2: Wake/Stun/Kill
  • Function 3: CTCSS/DCS Set & Scan
  • Function 4: Scramble function (Optional)
  • Function 5: 1750Hz Tone
  • Operating Temperature: -20~+60°c
  • Weight: About 1.2kg

Packaging & Delivery

Packaging Details Teamup TM-9000D color box (31cm*21.5cm*57cm)(L*W*H)
or according to customer's requirement
Delivery Time Shipped in 14 days after payment

Long distance!

Radio communication 100 mile walkie talkie 50 km two way radio mobile radio TM9000



Main Feature



1. 200 channels



2. DTMF/2 ton/5 tone



3. Wake/Stun/Kill



4. CTCSS/DCS Set & Scan



5. High/Mid/Low Power Switch



6. Audio Compandor



7. Editing Channel Name



8. Busy Channel Lockout



9. Talk Around



10. Voice Compander



11. Scramble function (Optional)



12. Voice Prompt



13. TOT (Time-out timer)



14. APO (Auto Power off)



15. Theft alarm providesextra safety





Specification

General part
Model No.TM9000
Frequency RangeUHF 400-490MHz / VHF 136-174MHz
Channel No.200 Channels
Channel Spacing25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)
Phase-locked Step5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz,2 5KHz, 30KHz, 50KHz,
Rated voltage13.8V DC ±15%
SquelchCarrier/CTCSS/DCS/5 Tone/2 Tone/ DTMF
Modulation modeF3E(FM)
Antenna impedance50Ω
Frequency stability±2.5PPm
Operating Temperature-20~+60°c
Dimensions(WxHxD)145x47X190mm (WxHxD)
WeightAbout 1.2kg
Transmitter(ETSI EN 300 086 standard testing)
 Power Output  Wide BandNarrow Band
60W/25W/10W(VHF)45W/25W/10W(UHF)
Modulation  16K Φ F3E11K Φ F3E
Hum & Noise≥ 40dB≥ 36dB
Spurious Emission ≥ 60dB ≥ 60dB
Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)
Audio distortion≤5%
Adjacent channel power≥70dB≥60dB
Receiver (ETSI EN 300 086 standard testing)
Sensitivity(12dB Sinad)Wide BandNarrow Band
≤0.25μV≤0.35μV
Adjacent channel selective≥70dB≥60dB
Intermodulation≥65dB≥60dB
Spurious Rejection≥70dB≥70dB
Audio response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)
Hum & Noise≥45dB≥40dB
Audio distortion≤5%
Audio Power Output> 2W@10%

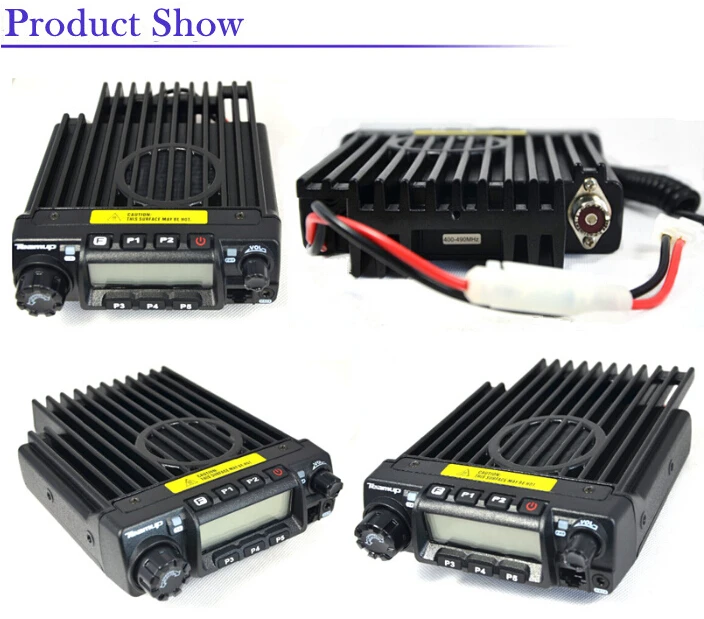

Product Show
Packaging



TM9000 radio communication equipment
Microphone [THM-03] (with DTMF keyboard)
Mobile Mounting Bracket [TMB-01]
DC Power Cable with Fuse Holder [TRL-01]
Black screws(M4x8mm) [TSS-01A]
Tapping screws(M5x8mm) [TSS-01B]
S-Washer [TSS-01D]
Spare Fuses
User Manual



Company Profile



Quanzhou Teamup Electronics Co., Ltd is a professional Handheld and Mobile transmitter manufacturer, which have advantages as below:



1. 100% Real factory
2. Sample order acceptable
3. Small order available
4. OEM order warm welcome





♦ Certificates

Exhibition Show



1) HKTDC Hong Kong Electronics Fair 2013 (Spring Edition)



2) 2013 China-ASEAN (Thailand) Commodity Fair



3) HKTDC Hong Kong Electronics Fair 2013 (Autumn Edition)



4) HKTDC Hong Kong Electronics Fair 2014 (Spring Edition)



5) ICT Expo Indonesia 2014



6) HKTDC Hong Kong Electronics Fair 2014 (Autumn Edition)





FAQ

1. Are you a Manufacturer or Trade Company?

• We are a professional manufacturer, which is specialized in two way radios (walkie talkie).



2. What's the Minimum Order Quantity (MOQ)?

• MOQ is 2pcs for sample, 500pcs for OEM. Large quantity better price!



3. Can we do OEM (with our own logo)?

• Of course, we do many OEM brands for customers!



4. What's the payment terms you accept?

• T/T; PayPal/ Western Union for sample order



5.How to program my radio to communicate with others?

• Firstly, set your radio in the same frequency as others; Secondly, set the same CTCSS/DCS and band, then you can talk with each other.



6.Why couldn't I communicate with other team members?

• Firstly, Please confirm that the channel frequency and the CTCSS/DCS you are using are the same as those of your team members. If   the channel frequency and the CTCSS/DCS are the same, please verify that your team members are within the radio coverage.



7.What are the differences between long antenna and short? Which one is better?

• Short antenna has convenient-design, and easy to carry. Long antenna covers wider communication range.So the choice all depends on the environment and personal favorite.



8.How long is the communication distance of your radios?

• The communicate distance would be disturbed by factors:environment/power/antenna etc

1) Environment: If you use it around high buildings and large mansions, the communication range is smaller.

2) Power: if the power of the radio is very low, you have a poor communicate distance.

3) Weather: If you use the radio in rainy day, the radio performance maybe poor.



9.How to use the radio correctly while talking?

• Hold the radio in a vertcal position and keep about 2-5cm distance with the radio.
